Production Labels¶
Production label of the machine¶
Note
The production label below is only its graphic design. Actual values may vary and are dependent on the specific machine design. Always follow the data indicated on the production plate located directly on the machine.
| Field | Value |
|---|---|
| Type | TURNER |
| Year of manufacture | 2024 |
| Serial number | 702 |
| Mass | 550 [kg] |
| Supply protection | 25 [A] |
| Power system | TN-C-S, 3+N+PE - 400/230[V]AC |

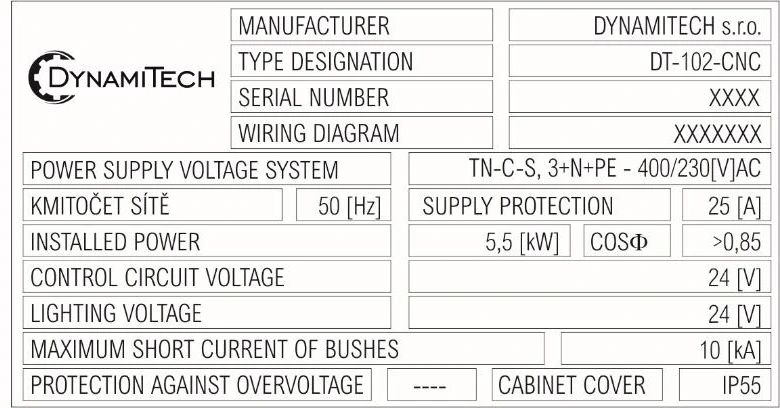

Production label of the switchboard¶
Note
The production label below is only its graphic design. Actual values may vary and are dependent on the specific machine design. Always follow the data indicated on the production plate located directly on the machine.
| Field | Value |
|---|---|
| Manufacturer | DYNAMITECH s.r.o. |
| Type designation | DT-102-CNC |
| Serial number | XXXX |
| Wiring diagram | XXXXXXX |
| Power supply voltage system | TN-C-S, 3+N+PE - 400/230[V]AC |
| Mains frequency | 50 [Hz] |
| Supply protection | 25 [A] |
| Installed power | 5,5 [kW] |
| COSĪ¦ | >0,85 |
| Control circuit voltage | 24 [V] |
| Lighting voltage | 24 [V] |
| Maximum short current of bushes | 10 [kA] |
| Protection against overvoltage | ---- |
| Cabinet cover | IP55 |
