TP1 Wireless Probe

The TP1-IR consists of two units: the transmitter, which is the touch probe itself, and the receiver.

Transmitter, Receiver

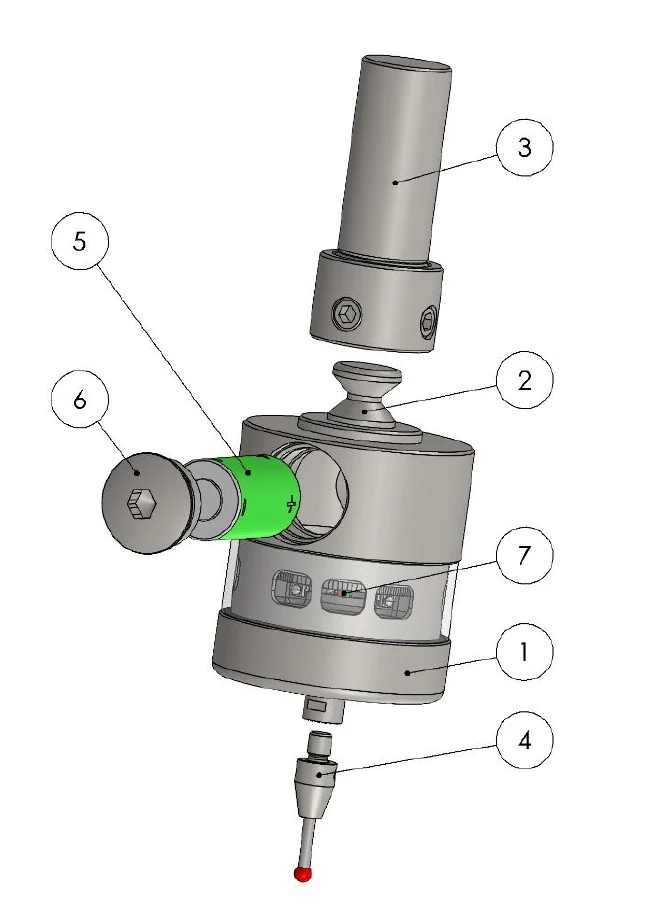

Exploded view of the TP1-IR transmitter with items 1 to 7 called out Transmitter

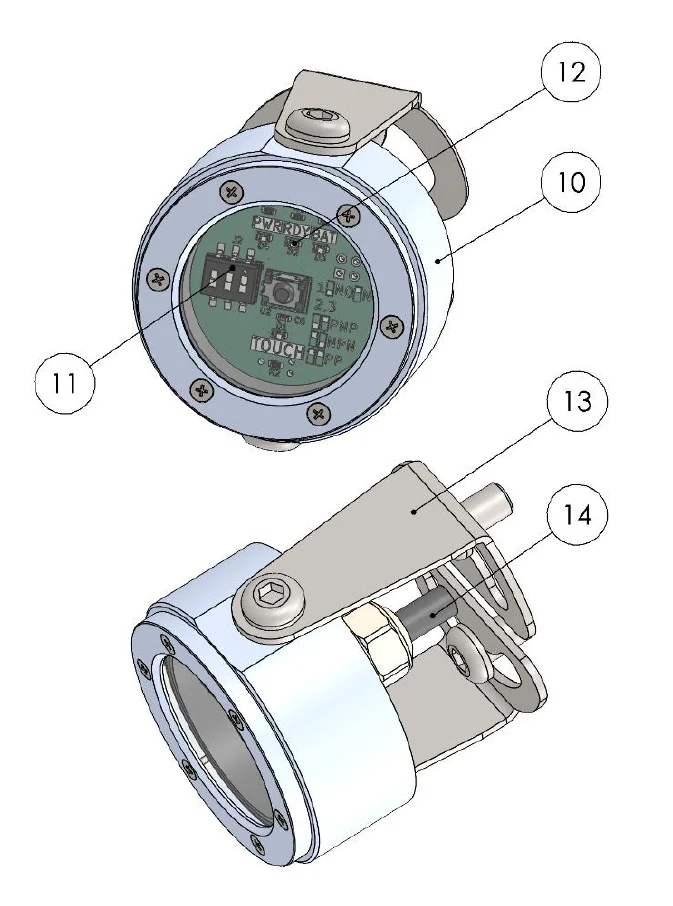

Views of the TP1-IR receiver with items 10 to 14 called out Receiver

Transmitter

No. Part
1 Probe body
2 Clamping pin
3 Clamping shank D16 with centering screws
4 Stylus
5 Battery
6 Battery cap screw
7 Status LED

Receiver

No. Part
10 Receiver body
11 Output configurator
12 4 x Status LED
13 Adjustable bracket
14 Output cable

Note

The status LEDs of both units are explained under Status Lights.
