Machine Mechanics¶
WARNING

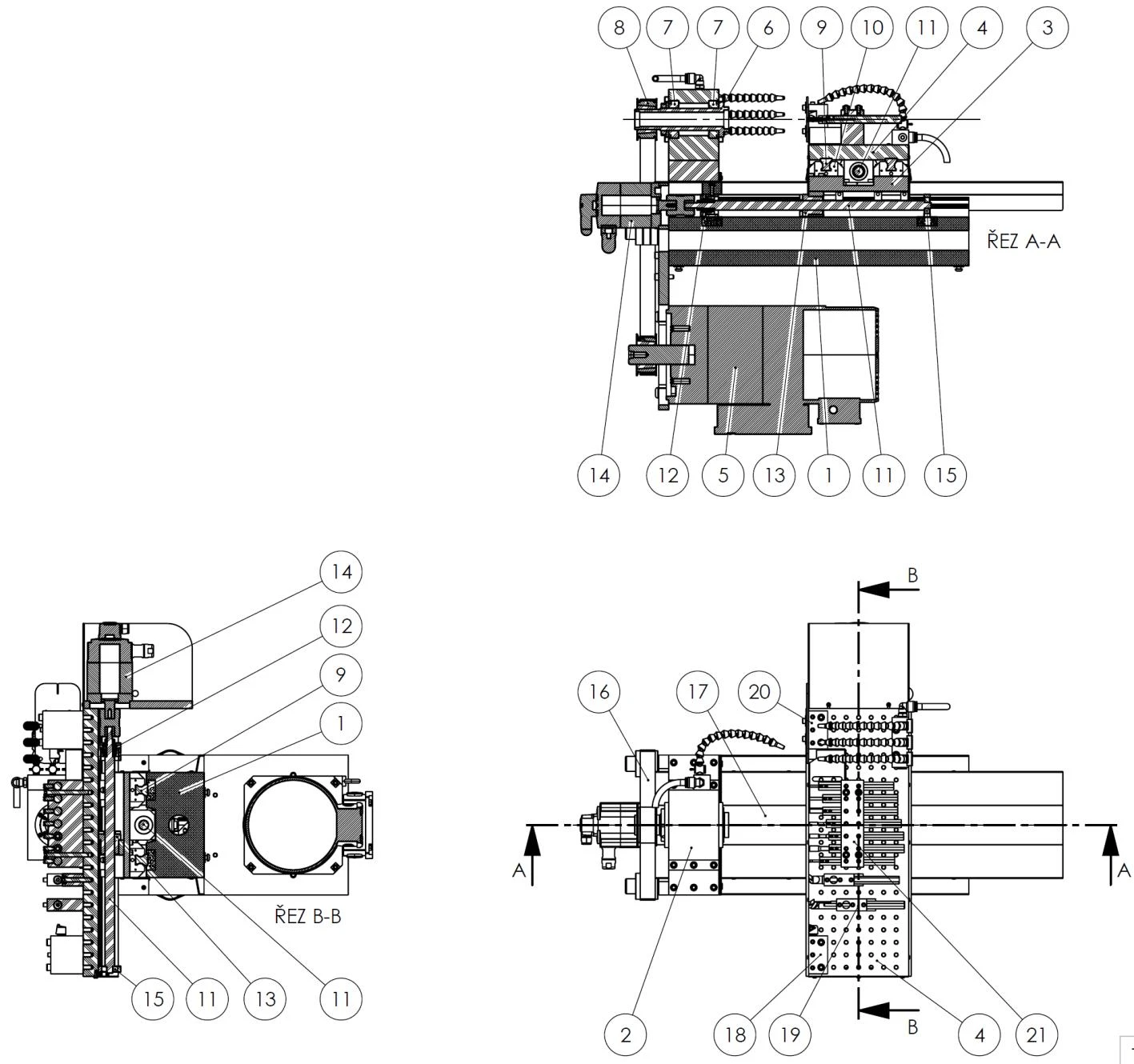

The following figure shows the 3 basic views of the machine mechanics. Study them with due care so that you fully understand the function of the individual parts.
| No. | Assembly |
|---|---|
| 1 | Machine bed (mineral casting) |
| 2 | Lathe headstock |
| 3 | Longitudinal support |
| 4 | Transverse support |
| 5 | Siemens spindle motor |
| 6 | Spindle |
| 7 | FAG taper bearing |
| 8 | Pulley |
| 9 | BoschRexroth (THK) rails |
| 10 | BoschRexroth (THK) ball runner block |
| 11 | Ball screw BoschRexroth (THK) |
| 12 | Radial-axial bearing |
| 13 | BoschRexroth ball nut (THK) |
| 14 | Servomotor Siemens |
| 15 | Support bearing |
| 16 | HTD 8 belt |
| 17 | Covering |
| 18 | Knife holder 16x16 |
| 19 | Knife holder D16H7 |
| 20 | Rear knife holder 16x16 |
| 21 | Tool bar 7xD16H7 |
