Main Components

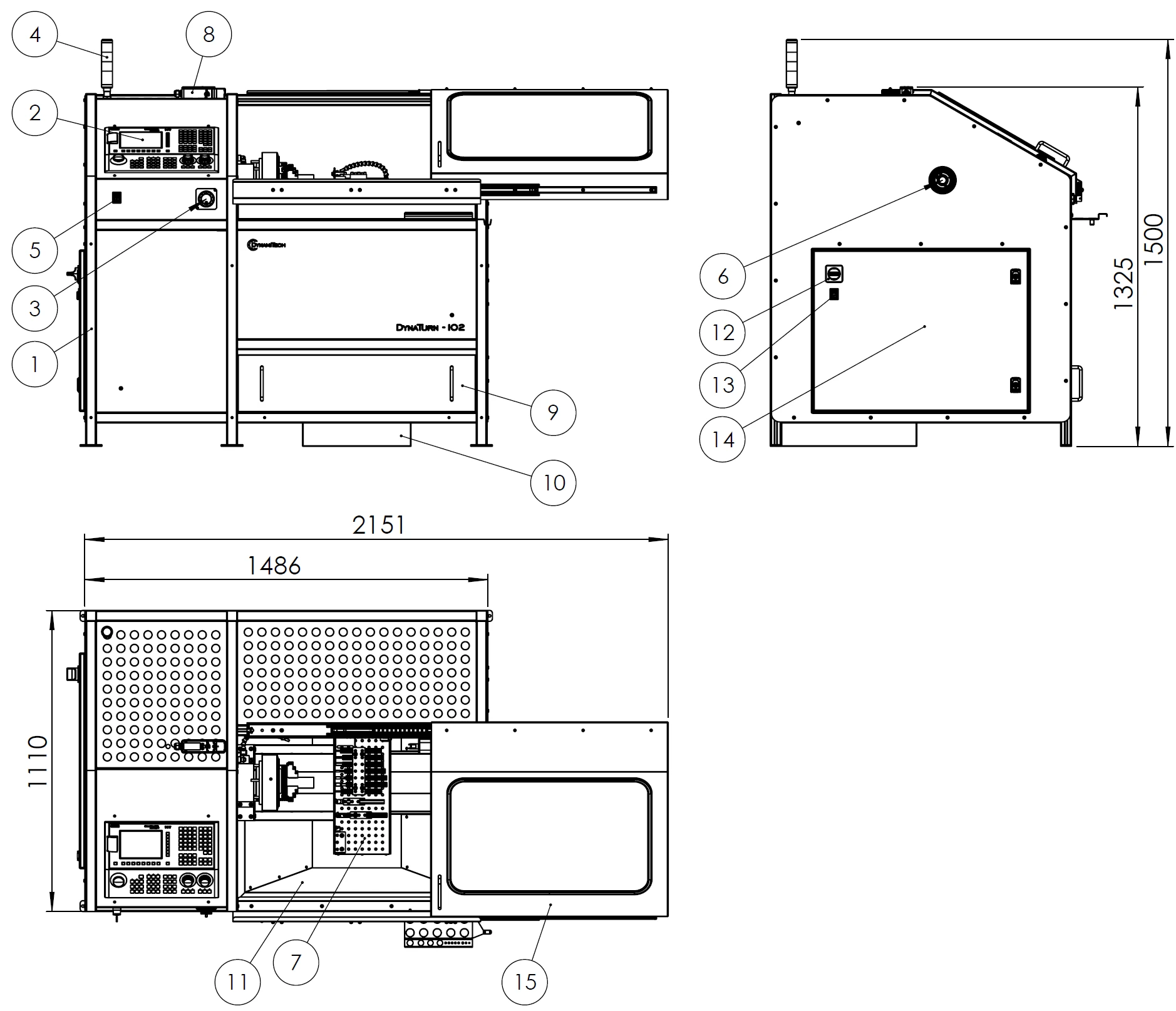

Front, side and top views of the Dyna Turn 102 with the numbered machine components and the overall dimensions 2151 x 1110 x 1500 mm

No. Component
1 Basic frame
2 Control system
3 [HAND WHEEL]
4 Status beacon
5 Mode selector
6 Spindle
7 Transverse support
8 Security lock
9 Chip bath
10 Liquid tank
11 Chip drain
12 Main switch
13 Signal light
14 Electrical switchboard
15 Security door
