TP1 Wired Probes¶

The wired range has three designs. They share one probe body, one measuring system and one stylus mount, and differ only in how the output cable leaves the probe.

Model	Cable outlet	Cable protection
TP1-W-R	Radial	—
TP1-W-R-PH	Radial	Stainless steel flexible hose
TP1-W-A	Axial	—

TP1-W-R¶

Wired touch probe with radial cable outlet: the cable leaves the side of the probe body, next to the clamping base.

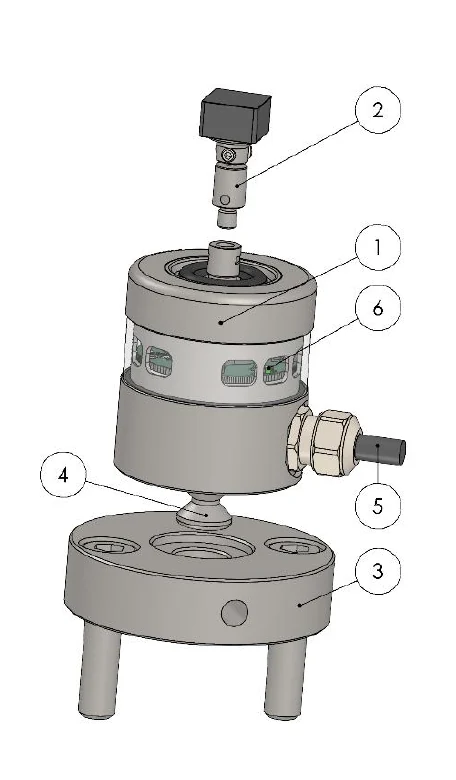

Exploded view of the TP1-W-R with items called out TP1-W-R

TP1-W-R-PH¶

The TP1-W-R with the same radial outlet, with the cable carried in a stainless steel flexible hose (item 8) for machines where the cable is exposed to chips and coolant.

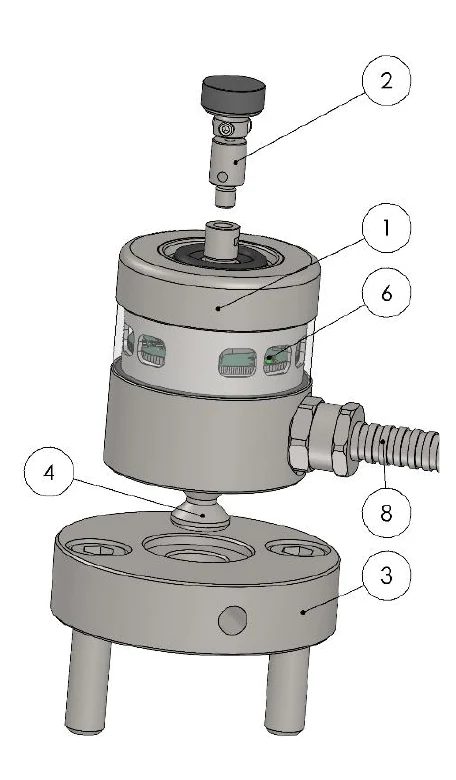

Exploded view of the TP1-W-R-PH with items called out TP1-W-R-PH

TP1-W-A¶

Wired touch probe with axial cable outlet: the cable leaves through the clamping cylinder (item 7), along the axis of the probe.

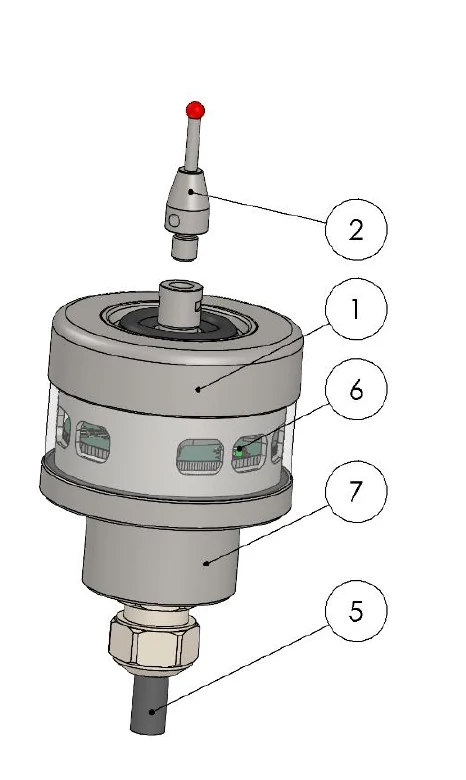

Exploded view of the TP1-W-A with items called out TP1-W-A

Parts¶

The callout numbers are the same in all three drawings.

No.	Part
1	Probe body
2	Stylus
3	Clamping base
4	Clamping pin
5	Output cable
6	Status LED
7	Clamping cylinder
8	Output cable with protective hose

Note

The status LED is explained under Status Lights.
