Control System¶

PPU Control panel¶

Information about the control panel can be found in the 808D Programming and Operating Manual.

PPU 161.XX / PPU 151.XX

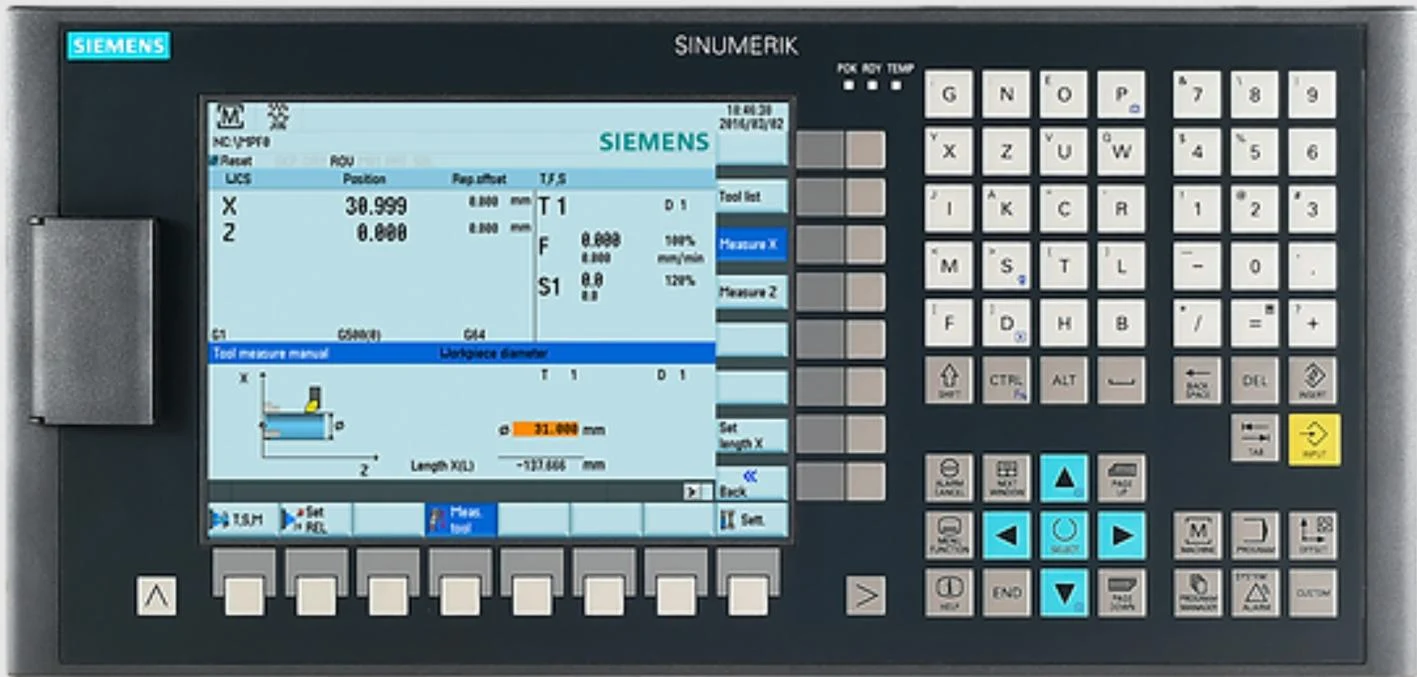

Siemens Sinumerik 808D Advanced PPU control panel

For information about the machine control panel, refer to the 808D Programming and Operating Manual.

Horizontal MCP panel with override switches

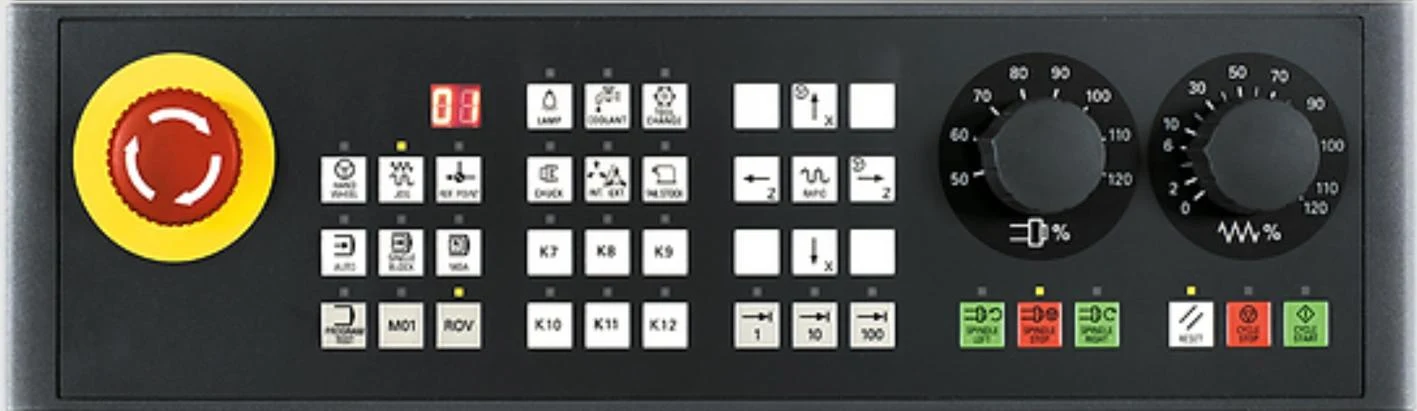

Horizontal machine control panel with emergency stop button and the spindle and feedrate override switches

Note

In general, all buttons on the MCP panel that have an LED installed signal the status of the given function.
